Exterior
| Glass | Mineral Glass |
Description

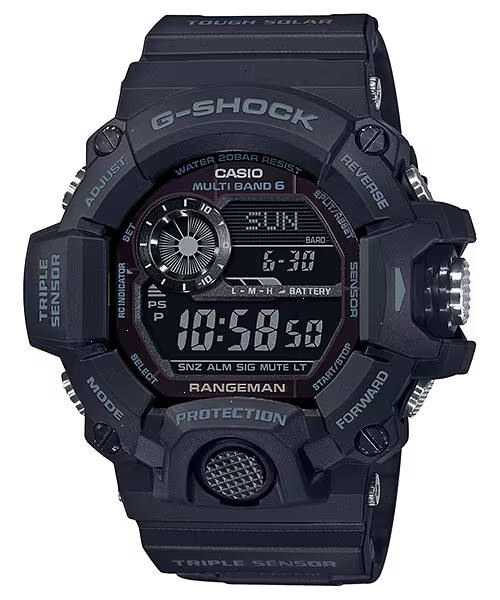

xMASTER OF G RANGEMAN
A model equipped with the triple sensor from the G-SHOCK RANGEMAN series, which supports men facing harsh natural environments.
It comes equipped with a triple sensor for altitude, orientation, and atmospheric pressure/temperature, and has a button guard cylinder structure that enables smooth and accurate operation by using a metal cylinder guard on the sensor button part that displays information. Comes equipped with a sensor button which, when pressed, displays the previous sensor mode, and features three notification sound levels, enabling intuitive operation. The inverted LCD makes it entirely black while the orange accents give it a powerful, tough design that exudes durability and gives the watch an edge.
A G-SHOCK RANGEMAN equipped with functions necessary for activities in extreme environments.
Watchfeatures
xWatch Features
| World time | World time 31 time zones (48 cities + coordinated universal time), daylight saving on/off |
| Sunrise/sunset display | Sunrise, sunset time display Sunrise time and sunset time for specific date, daylight pointers |
| Stopwatch | 1/100-second stopwatch Measuring capacity: 999:59'59.99'' Measuring modes: Elapsed time, split time, 1st-2nd place times |
| Timer | Countdown timer Measuring unit: 1 second Countdown range: 24 hours Countdown start time setting range: 1 minute to 24 hours (1-minute increments and 1-hour increments) |
| Alarm/hourly time signal | 5 daily alarms (with 1 snooze alarm),Hourly time signal |
| Light | LED backlight (Super Illuminator) Full auto LED light, selectable illumination duration, afterglow |
| Light color | LED:White |
| Calendar | Full auto-calendar (to year 2099) |
| Mute feature | Button operation tone on/off |
| Energy saving feature | Power Saving (display goes blank to save power when the watch is left in the dark) |
| Battery display/alert | Battery level indicator |
| Run time | Approx. battery operating time: 8 months on rechargeable battery (operation period with normal use without exposure to light after charge) 23 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge) |
| Accuracy | Accuracy: ±15 seconds per month (with no signal calibration) |
| Other features | 12/24-hour format,Regular timekeeping: Hour, minute, second, pm, month, date, day |
| Time adjustment details | Time Calibration Signals Station name: DCF77 (Mainflingen, Germany) Frequency: 77.5 kHz Station name: MSF (Anthorn, England) Frequency: 60.0 kHz Station name: WWVB (Fort Collins, United States) Frequency: 60.0 kHz Station name: JJY (Fukushima, Fukuoka/Saga, Japan) Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga) Station name: BPC (Shangqiu City, Henan Province, China) Frequency: 68.5 kHz,Time calibration signal reception Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful) *5 times a day for the Chinese calibration signal Manual receive The latest signal reception results |
| Sensor feature details | Manual data recording of up to 40 records (altitude, barometric pressure / temperature, bearing, time (Time Stamp)) |
Basicinformation
xBasic Information
| Case size (L× W× H) | 55.2 × 53.5 × 18.2 mm |
| Weight | 93 g |
| Case and bezel material | Resin |
| Band | Resin Band |
| Construction | Shock Resistant |
| Water resistance | 200-meter water resistance |
| Time adjustment | Radio-controlled Watch Multi band 6 |
| Power supply and battery life | Tough Solar (Solar powered) |
| Sensor feature | Altimeter Measuring range: -700 to 10,000 m (-2,300 to 32,800 ft.) Measuring unit: 1 m (5 ft.) Altitude Memory Function: Manual Readings: 40 records, each containing date and time, direction angle, altitude, barometric pressure, and temperature Auto Save Data: High altitude, low altitude, cumulative ascent, cumulative descent (1 value each) Others: Relative altitude readings (-3,000 to 3,000 m) Selectable measurement interval: 5 seconds or 2 minutes *1 second for first 3 minutes only *Changeover between meters (m) and feet (ft),Barometer Display range: 260 to 1,100 hPa (7.65 to 32.45 inHg) Display unit: 1 hPa (0.05 inHg) Atmospheric pressure tendency graph (past 42 hours of readings) Atmospheric pressure differential graphic Barometric pressure tendency information alarm (beep and arrow indicate significant changes in pressure) *Changeover between hPa and inHg,Digital compass Measures and displays direction as one of 16 points Measuring range: 0 to 359° Measuring unit: 1° 60 seconds continuous measurement Graphic direction pointer Bidirectional calibration Magnetic declination correction Bearing memory,Thermometer Display range: -10 to 60℃ (14 to 140℉) Display unit: 0.1℃ (0.2℉) *Changeover between Celsius (℃) and Fahrenheit (℉) |
